Fri, Aug 16, 2024

This is my turreted mostly 3d printed ftc robot, it has belted and countersprung slides, a 300mm mgn9 pass through, all on a turret. It’s quite flimsy though, I plan on making an aluminum mount for the slides and pass through.

Wed, Jul 10, 2024

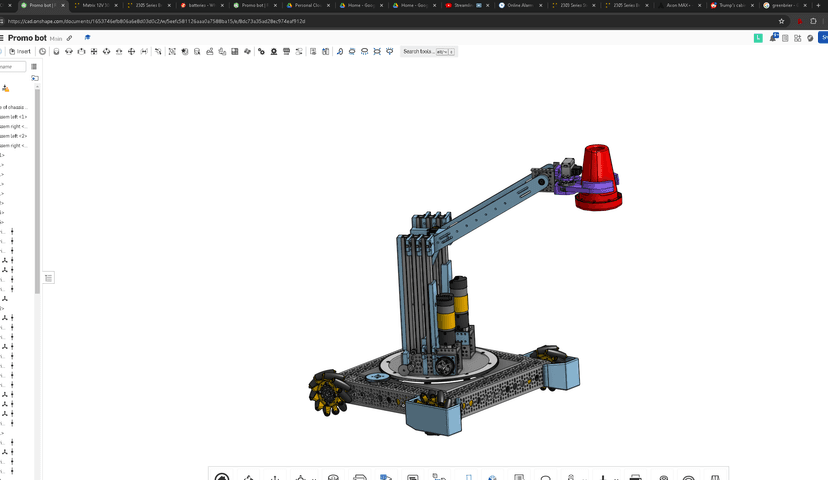

I designed and built a 3d printed robot with a turret and linear slides. I havent attached the claw and arm as i dont have the servos i need at my house, however i finished putting the slides together and belting them. cad.onshape.com/documents/1653746efb806a6e8d03d0c2/w/5eefc581126aaa0a7588ba1[…]d28ec974eaf912d?renderMode=0&uiState=668e286d476eb63d5396fe06

https://scrapbook-into-the-redwoods.s3.amazonaws.com/0913c1a4-1cde-45e3-8748-77ffc2e23c7c-image.png

Tue, Jul 9, 2024

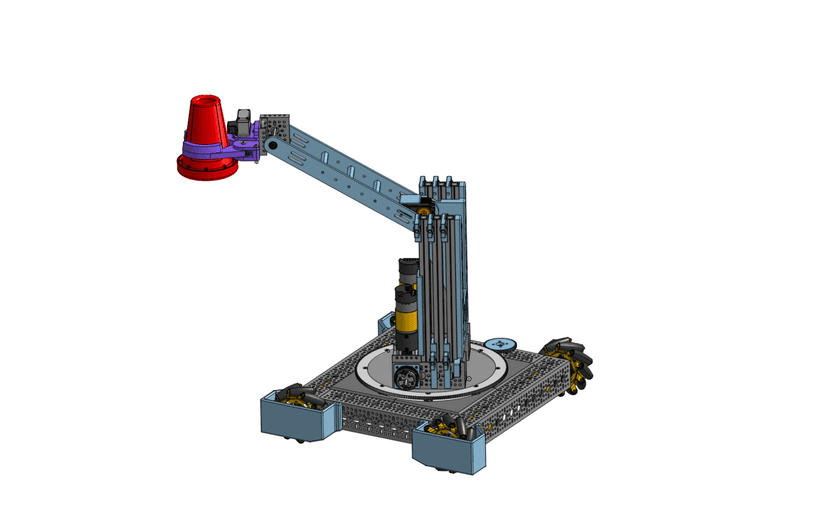

I completed for my offseason FTC speedrun robot. It has 3 vertical SAR330s, ais belt driven, and is mounted on a turret. The Arm can flip around 180 degrees. I still need to make my own claw and wrist/pivot end effector cad.onshape.com/documents/1653746efb806a6e8d03d0c2/w/5eefc581126aaa0a7588ba1[…]d28ec974eaf912d?renderMode=0&uiState=668cd9c5233e152ad21d3d20

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b9dbd0fd-a486-4d93-87b9-0a5f4f6bccf5-image.png

Fri, Jul 5, 2024

i made a ftc chassis with a turret and linear slides that are belt driven. cad.onshape.com/documents/1653746efb806a6e8d03d0c2/w/5eefc581126aaa0a7588ba15/e/8dc73a35ad28ec974eaf912d github.com/ecefour15/powerplay-robot-project-HCA

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/df34db9d-1a20-406a-aed2-93f9a263f108-162805fe-448a-441f-8c6c-8cf4c530fdce.png
